Installation Procedure
01 - LATCH SET
Pull the DIN rail latches on the rear of the module to the open position.
02 - ALIGN
Position the module on the DIN rail. Place it specifically to the left of the controller. Press the module until it snaps onto the rail profile.

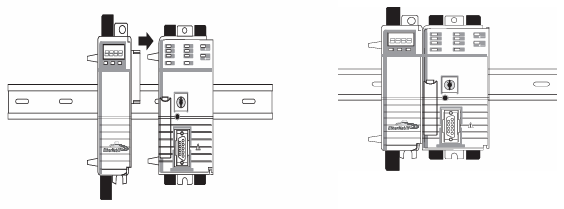

03 - SECURE
Slide the module along the rail until it is flush against the controller. Verify the connection is tight and no gap remains.
IMPORTANT: Data Integrity Protocol
Prior to hardware disconnection, cycle power to OFF. Observe all status indicators on the power supply and controller; wait until all LEDs are completely extinguished. Failure to wait may interrupt active internal memory writes, resulting in permanent program loss.
Removal Procedure
① Power Off
Turn off the CompactLogix power supply. Make sure all diagnostic LEDs are dark before touching anything.
② Open Latches
Release the DIN rail latches on the EtherNet/IP module. Also release the latches on the module immediately to its left.
③ Disconnect Bus
Slide the EtherNet/IP module to the right (along with any modules to its right) to break the backplane connection.
④ Create Clearance
Move the controller slightly left to make room between it and the EtherNet/IP module.
⑤ Remove Module
Pull the module straight forward off the DIN rail.
