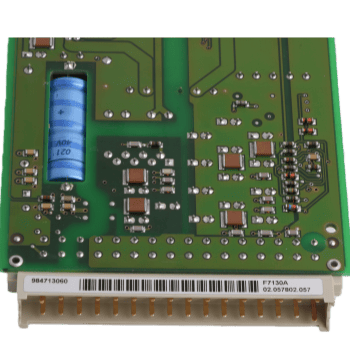

The module supplies PES H41q with 5 VDC from a 24 VDC main supply. It is a DC/DC converter with electrical isolation between input and output. Features include overvoltage protection, current limitation, and short-circuit proof outputs. Supply connections are separated for central device/IO modules and HIBUS interface.
Input voltage (L+) and output voltages are indicated by LEDs on the front plate. Operation remains valid if the 5 V CPU/EA LED is dim.
Power for central device monitoring is fed via pin z16 (NG).
Key Features
| DC/DC Conversion | 24 V → 5 V for PES H41q |
| Electrical Isolation | Input/output isolated |
| Protection | Overvoltage, current limit, short-circuit proof |
| Connections | Central device/IO and HIBUS separate |
| Indicators | Front-panel LEDs |
| Operation | Maintains function if 5 V CPU/EA LED dim |
| Central Device Power | Pin z16 (NG) |
